Finishing the Fascia

Last bit of construction.


Before I can finish off the fascia I still need to frame it in with plywood to give the Masonite I will be using proper support. Since this layout will likely get handled a lot I don’t want a flimsy fascia, the scorn of many a layout.

bronx terminal fascia

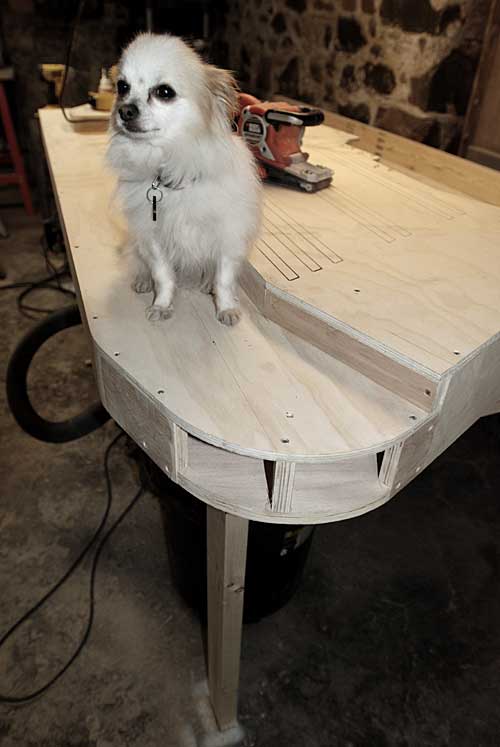

The curved edges required a bit of extra structure below the layout so the Masonite would be supported top and bottom.

bronx terminal fascia

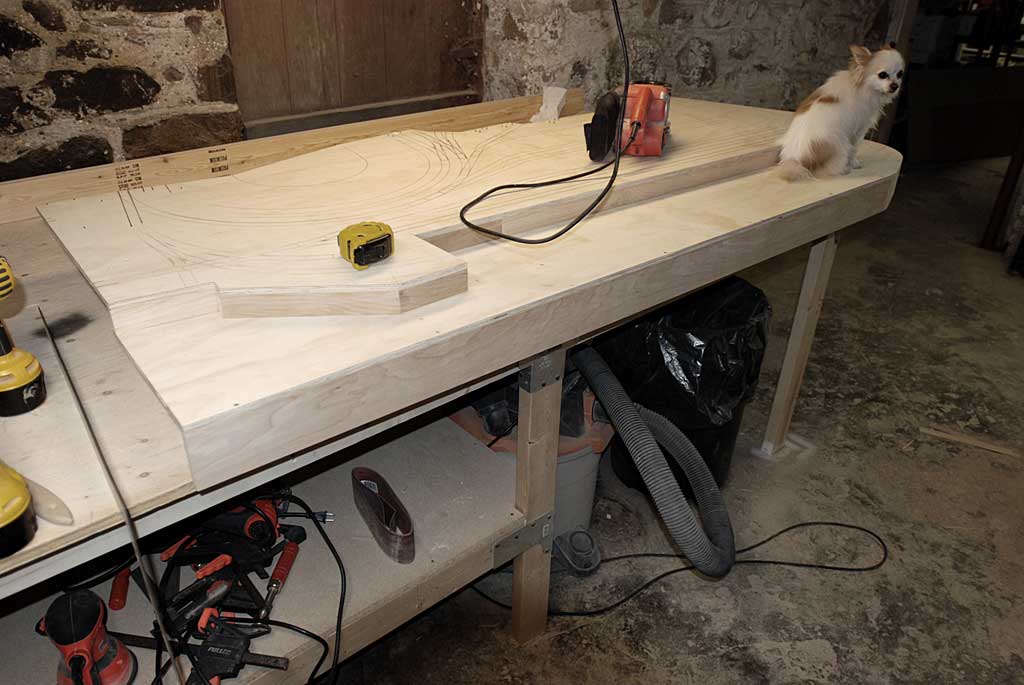

Plywood added along the waterfront. 3/4″ Baltic birch cabinet grade plywood was used for maximum strength.

bronx terminal fascia

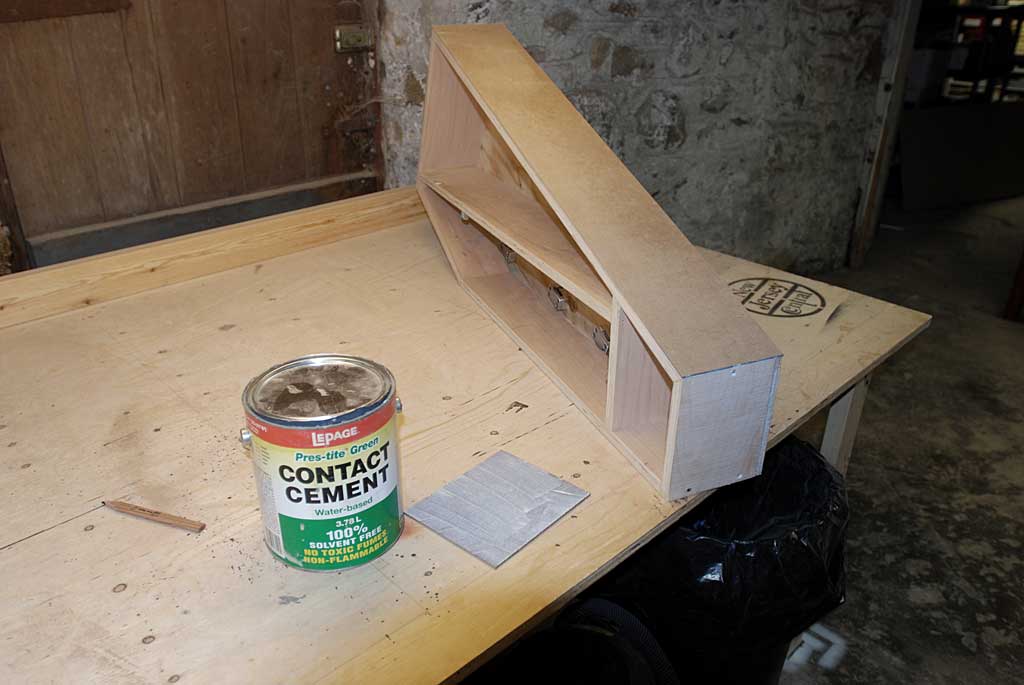

Borrowing the technique for laminating cabinets I decided to use water based contact cement to adhere the Masonite to the layout. This eliminates the need for screws and filler.

bronx terminal fascia

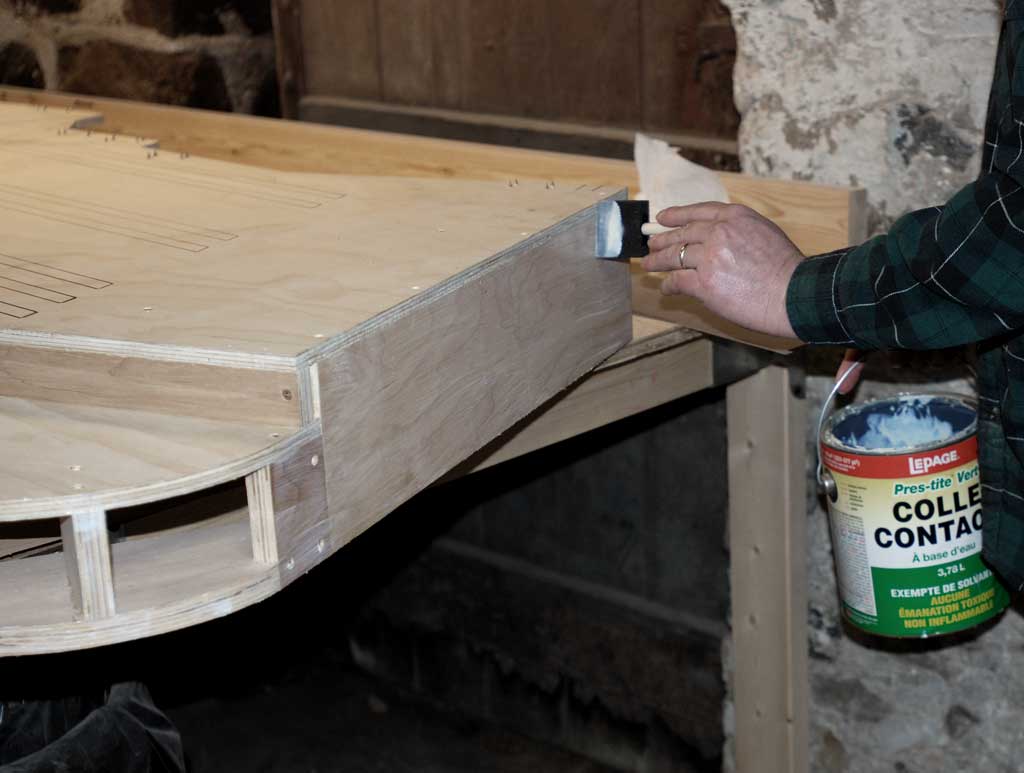

Contact cement has to be applied to both surfaces being glued together. The glue has to dry to tacky state and when the two surfaces touch, the bond is completed. You only get one try.

bronx terminal fascia

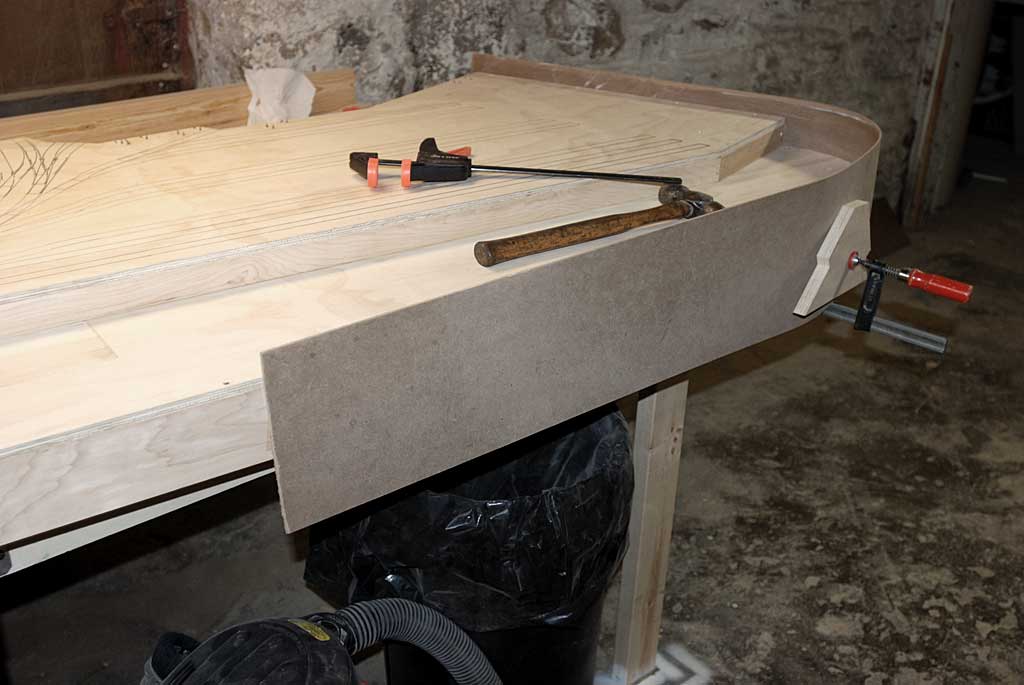

Typically the two surfaces do not require clamping, but the sharp radius around the outside edge was a bit much for the bond. Clamping the pieces will help form a very solid bond.

bronx terminal fascia

After about an hour the clamps can be removed and the bond is complete.

bronx terminal fascia

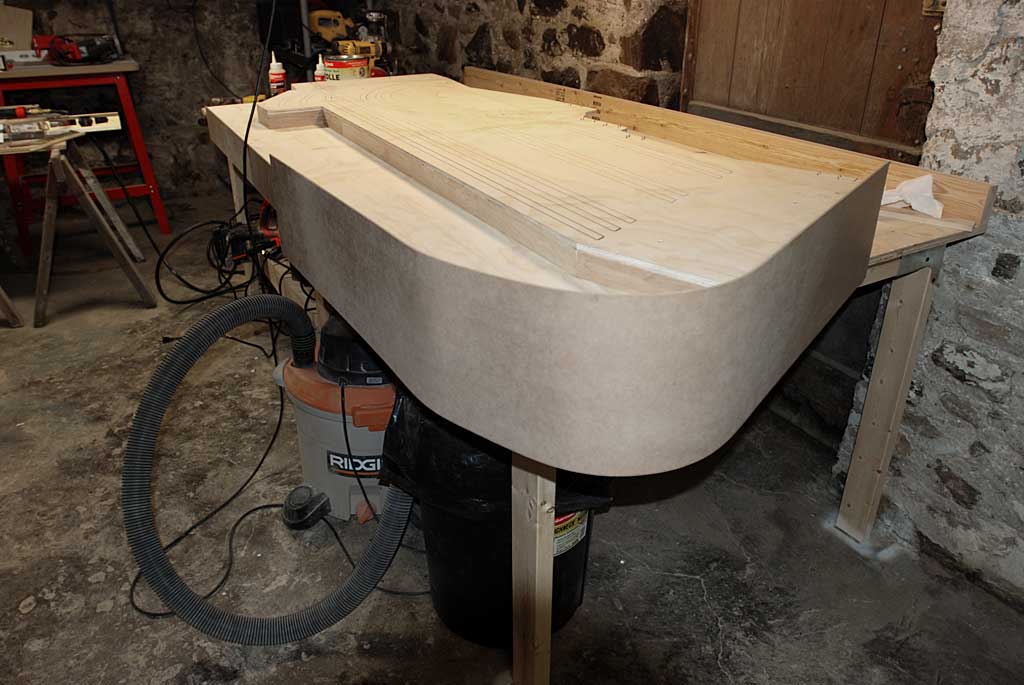

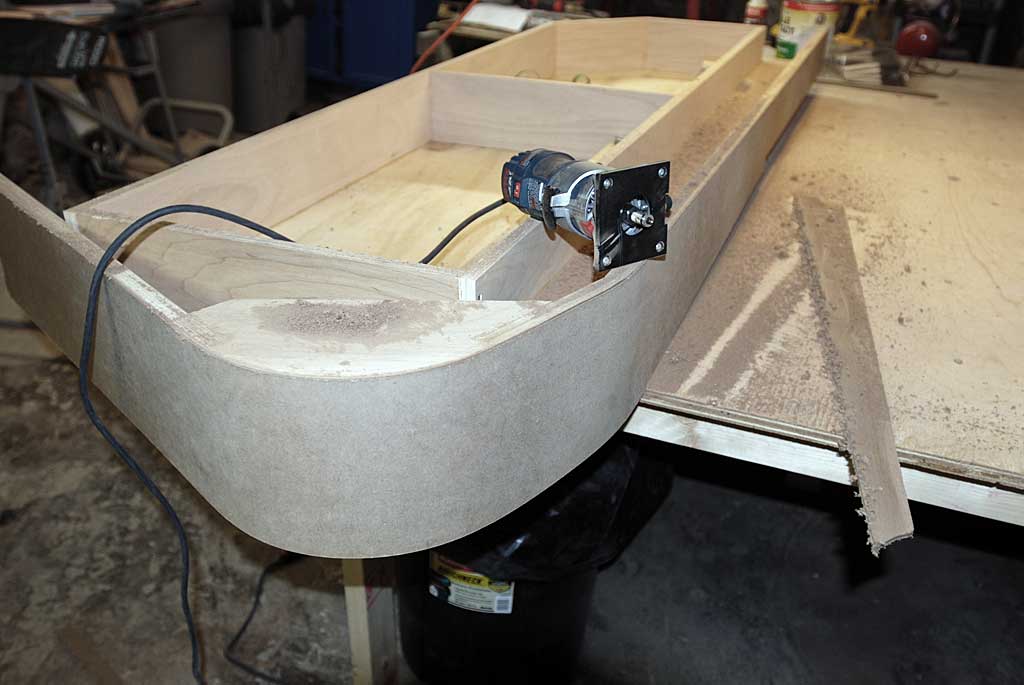

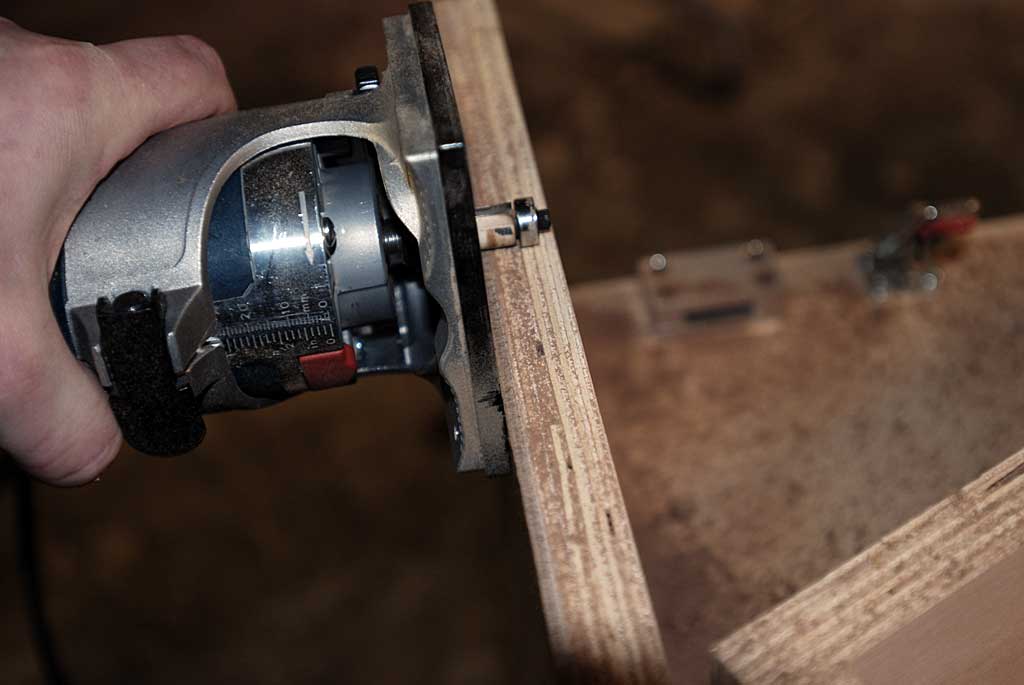

Using a laminate trimmer (router) the Masonite is cut off flush with the plywood. The Masonite I glued to the plywood was much wider then necessary, about 2″ per side. When wrapping around a corner it is very easy to get it a bit crooked, leaving lots extra to trim off after will ensure a perfect edge.

bronx terminal fascia

bronx terminal fascia

bronx terminal fascia

The other sections received the same treatment.

It was suggested to finish off the front of the layout in a rusty finish, which I think is a great idea and would suit the layout very well. I decided to also add some fake rivets as well.

On to Next Section
