First Box Complete
First Section

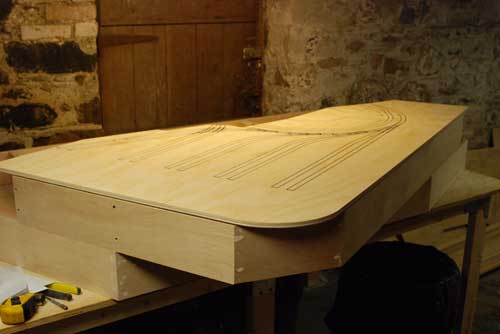

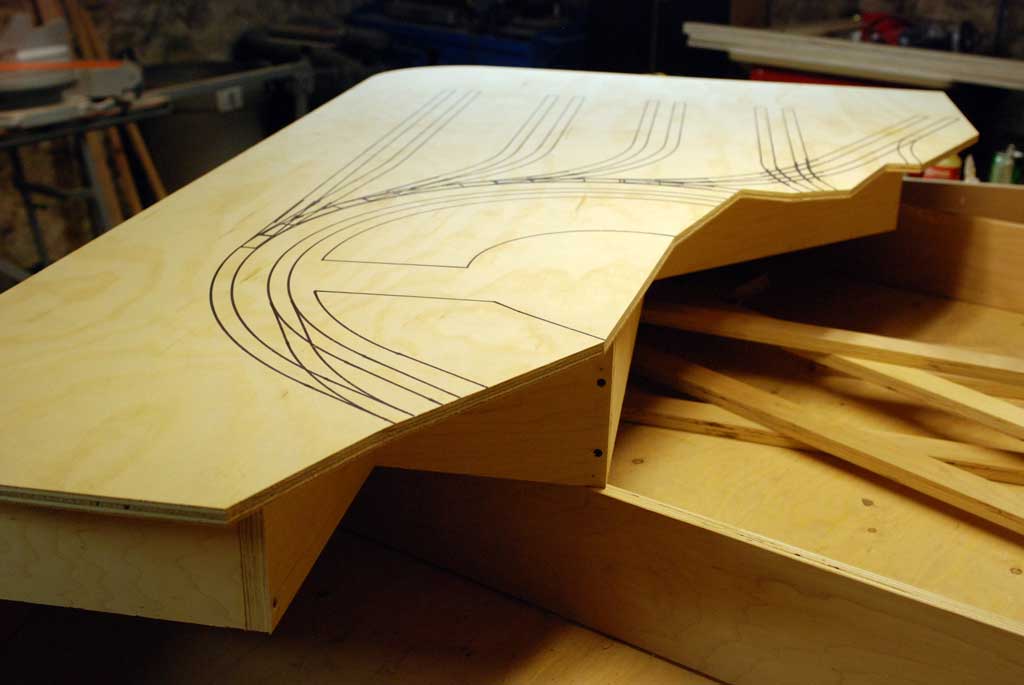

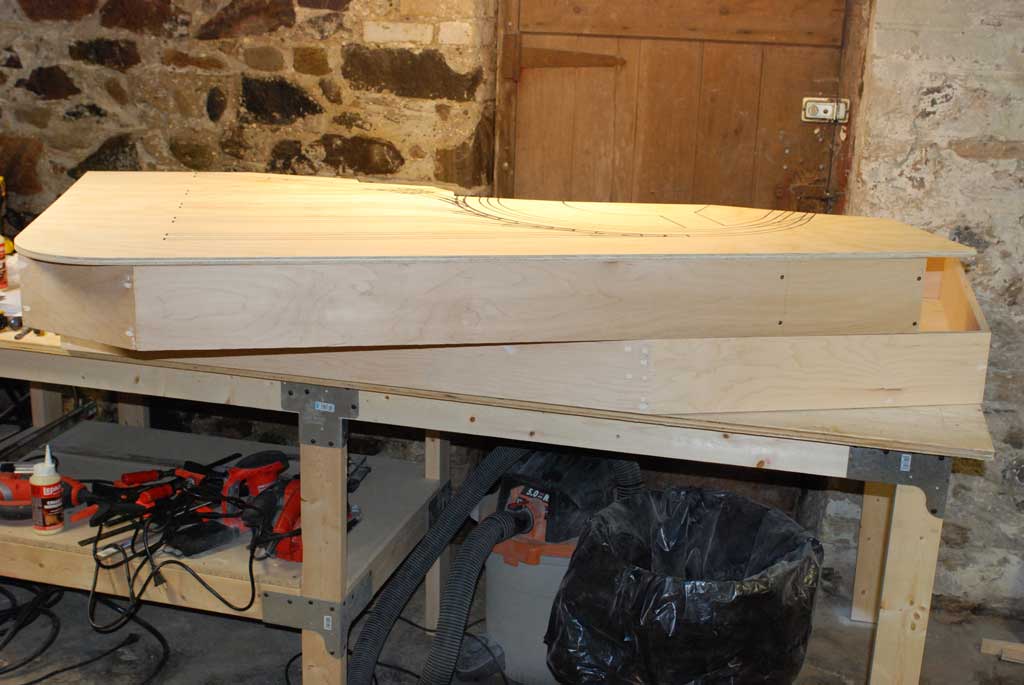

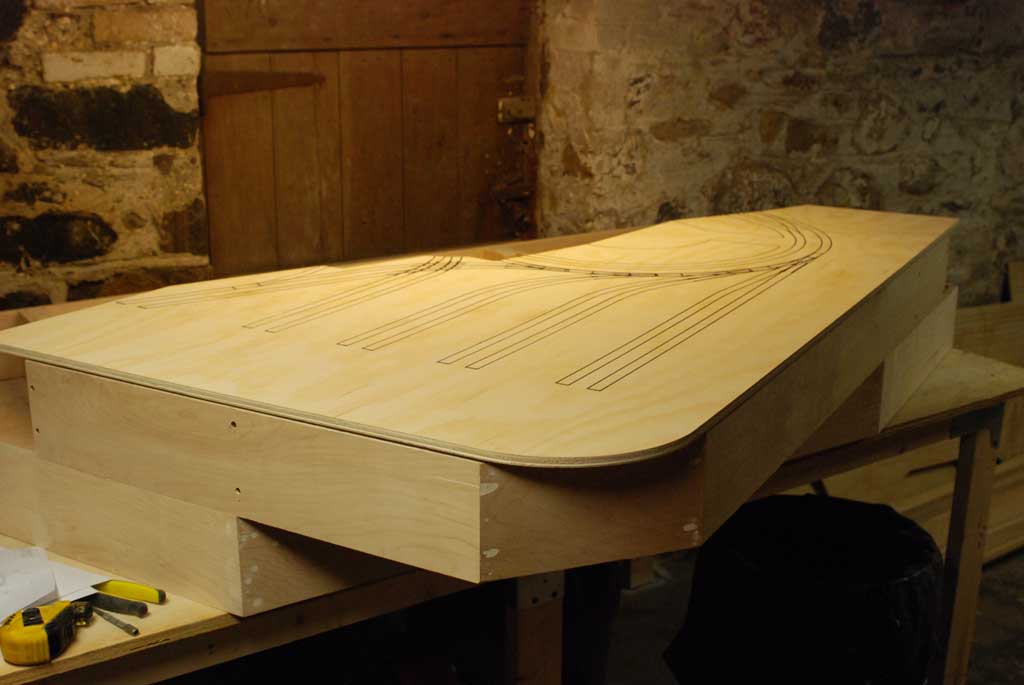

With the collapsible benchwork complete I started in on the sections that will sit on it. The first section is complete, but I have not fastened the top down onto it yet, I want to wait until all the boxes are complete to ensure everything will line up properly.

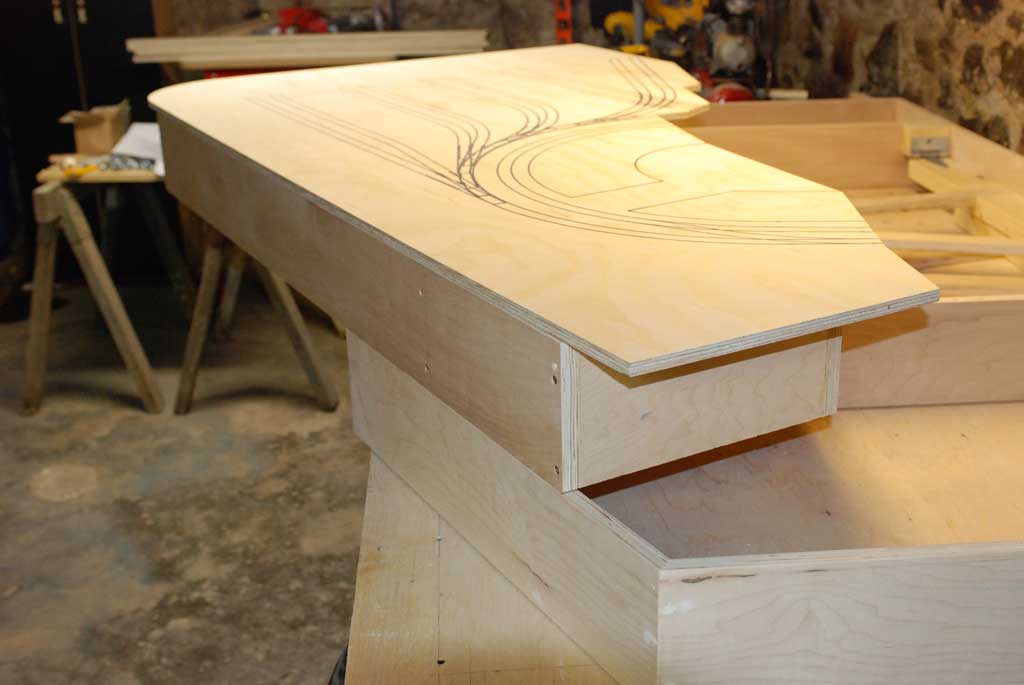

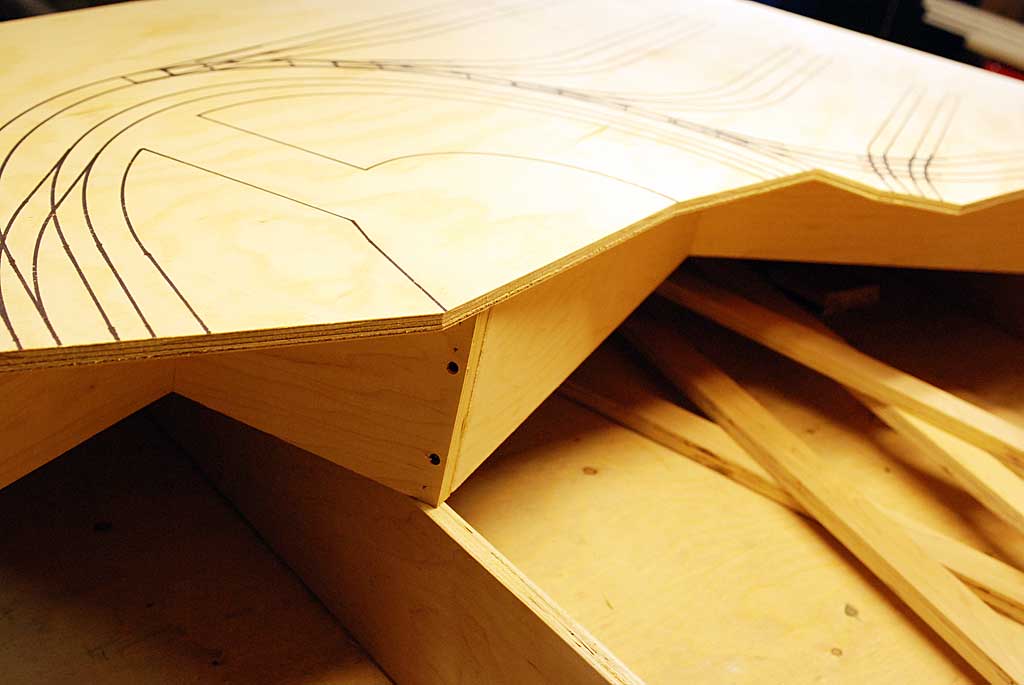

The sides of the benchwork and the boxes are all ripped from 3/4″ cabinet grade plywood, cut to 5 1/2″ high. I chose an extra high side so all the undertable items will fit completely within the box, such as switch machines and wiring. Plus it is plenty rigid, I don’t want this to twist on me. I’m not concerned about weight as the sections will require two people to move them anyway due to their awkward size, so if it weighs 10 pounds or 60 pounds it won’t make a difference.

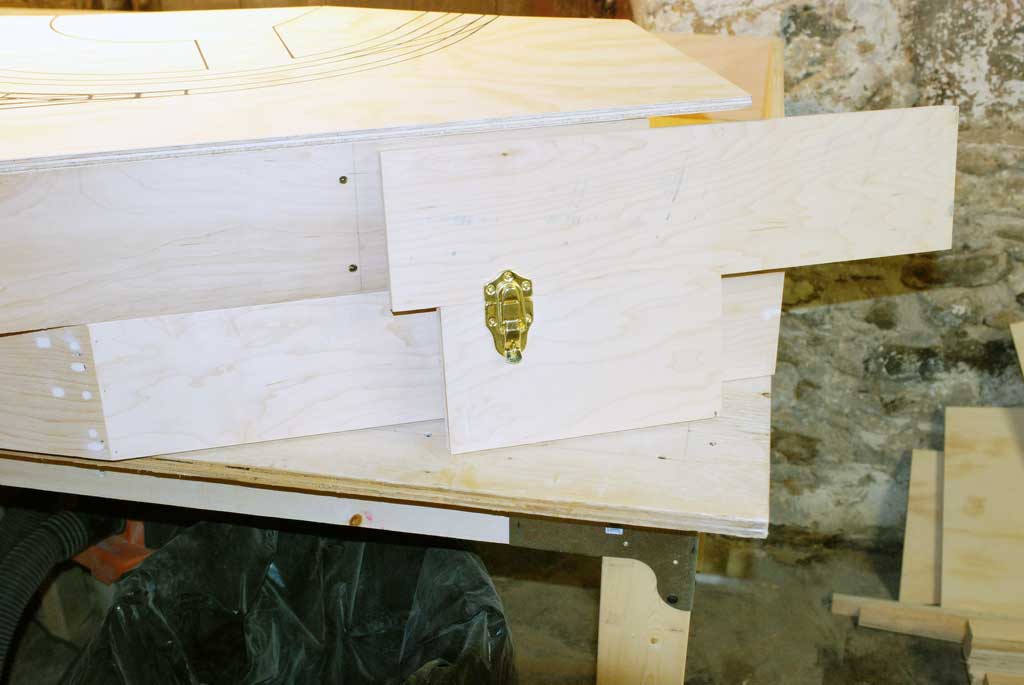

The boxes will be clipped to the benchwork using several “suitcase” clips at strategic locations. Alignment clips will be made from 1/4″ aluminum and fastened on the bottom of the layout to ensure everything stays in a horizontal plane on the top. I’m still working on the design of those.
With a long weekend approaching I am hoping to get the other two boxes complete and start on the alignment clips.
On to Next Section
-T
