Pointless Frog

Continuous Rail Turnout

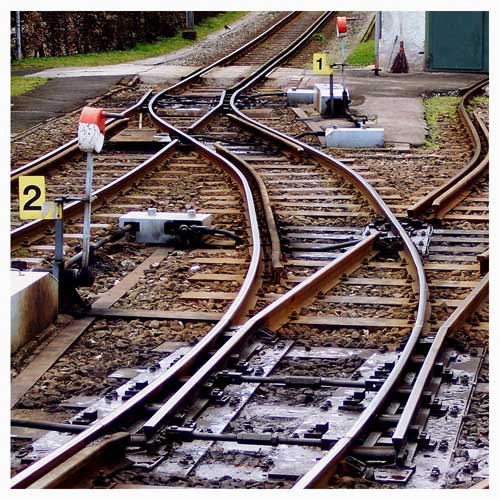

This image was sent to me last week from a reader. It is a rotating frog turnout from a tram system in Europe (location unknown). The trains using this track use a form of track based braking that requires uninterrupted rail, to make this work at turnouts a section of rail is rotated to align with the route selected. Pretty clever, and would be quite reliable I would think (except in -30C under a foot of snow and ice).

Thanks Richard!

-T.
