Riveting Detail

Faux Finish Fascia

click on images for larger version….

bronx terminal fascia

I decided to do a faux finish on the fascia to mimic an old rusty piece of steel.  To start I used hardwood plugs to imitate rivets along the edge of the layout. 1/2″ holes were drilled 3″ apart along the top and bottom (top only completed in this image)

bronx terminal fascia

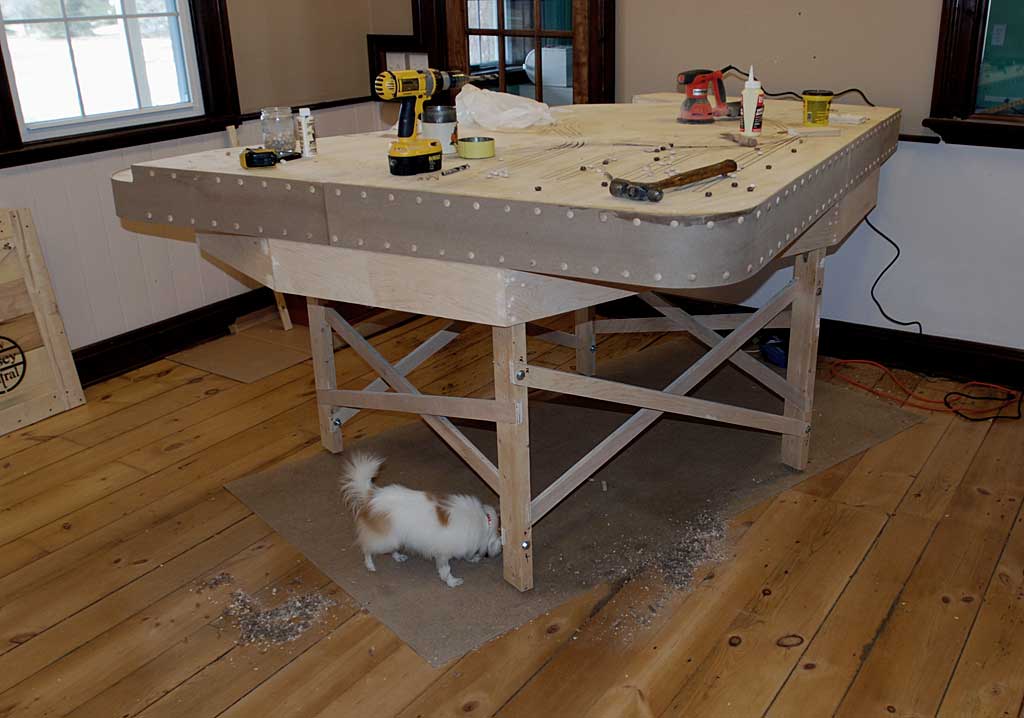

216 rivets were used. I counted.

bronx terminal fascia

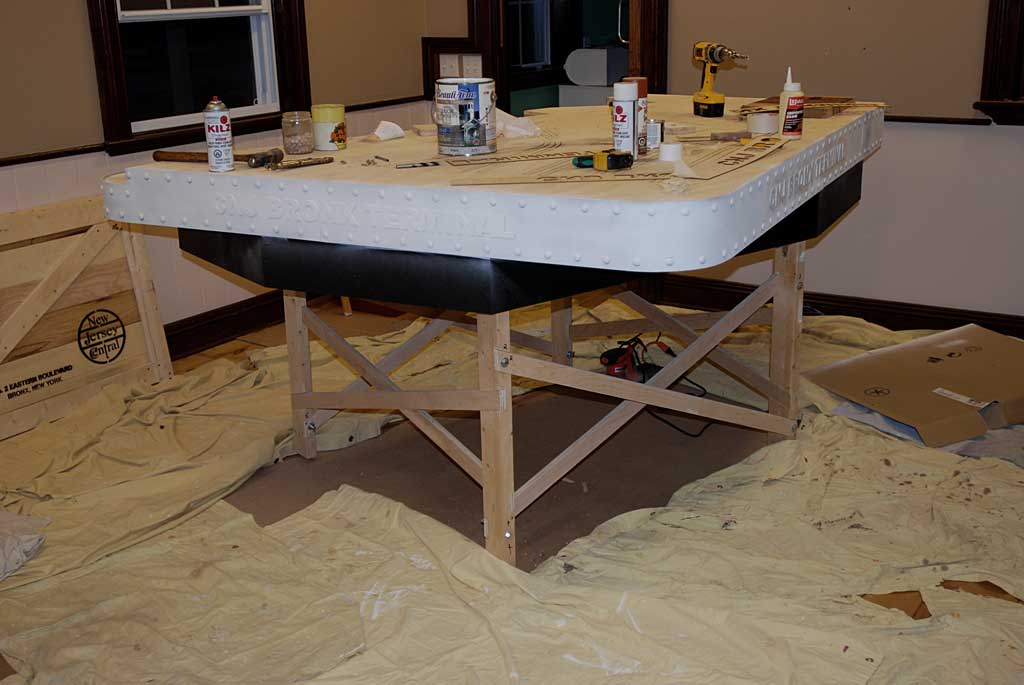

Being short on time (I was doing this on Thursday for a show on Saturday) I decided to use a spray on primer that would dry very quick. One of the nice effects of this primer was it created a authentic texture to the surface.

bronx terminal fascia

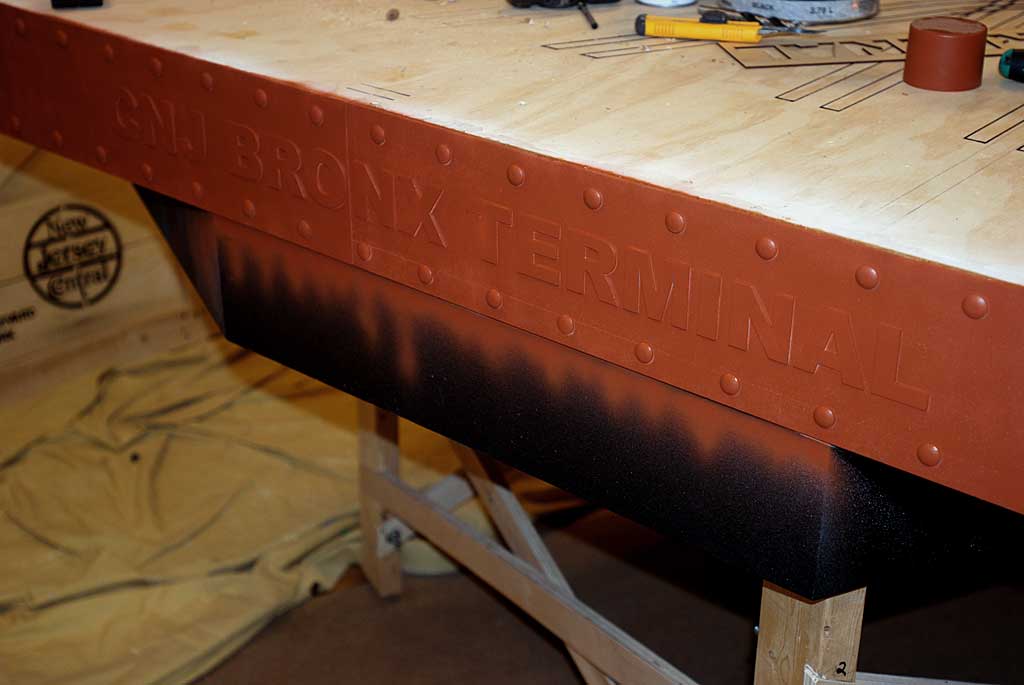

Once the primer was dry I gave the edge a base coat of an orangy rusty colour.

bronx terminal fascia

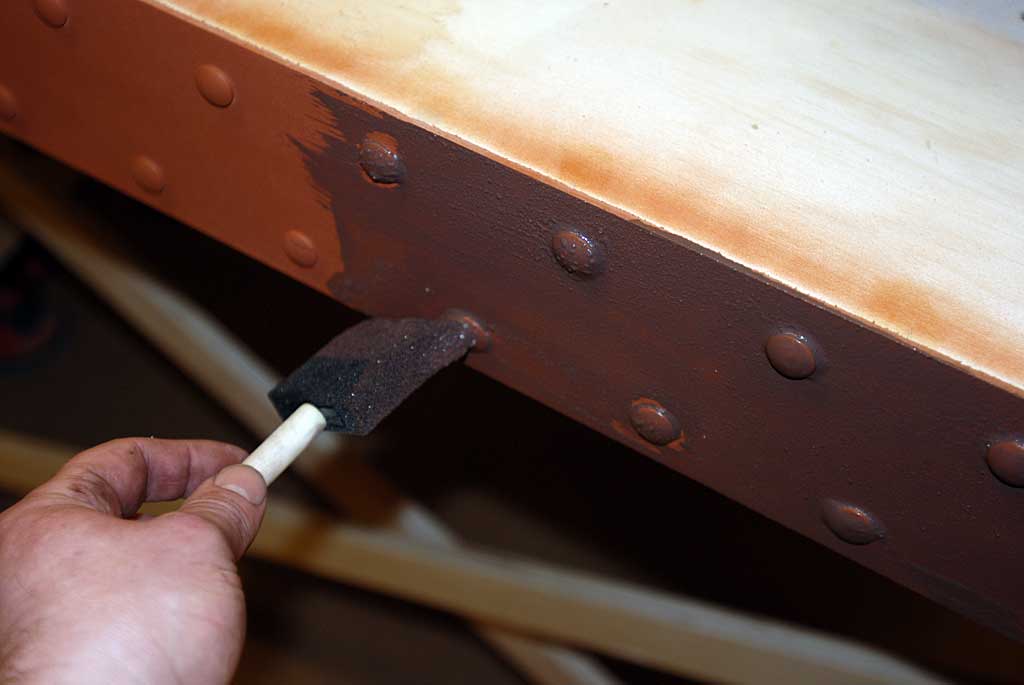

Once the base coat was dry a watered down reddish browny paint was brushed onto the orangy rusty colour.

bronx terminal fascia

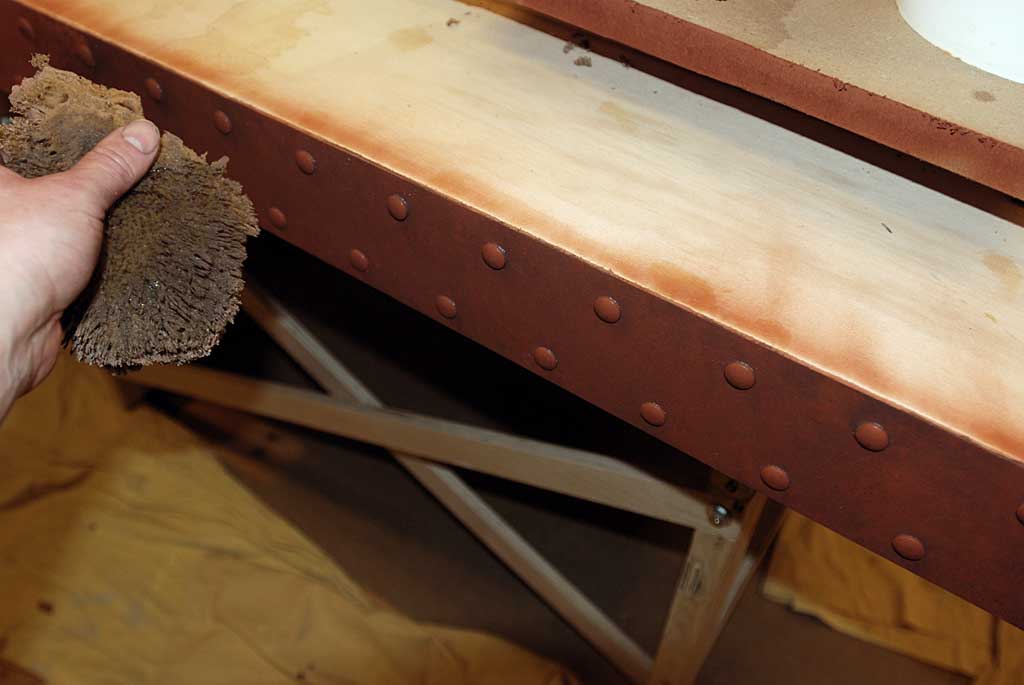

After applying the reddish browny colour the colour is blotted off with a damp sponge creating a texture.

bronx terminal fascia

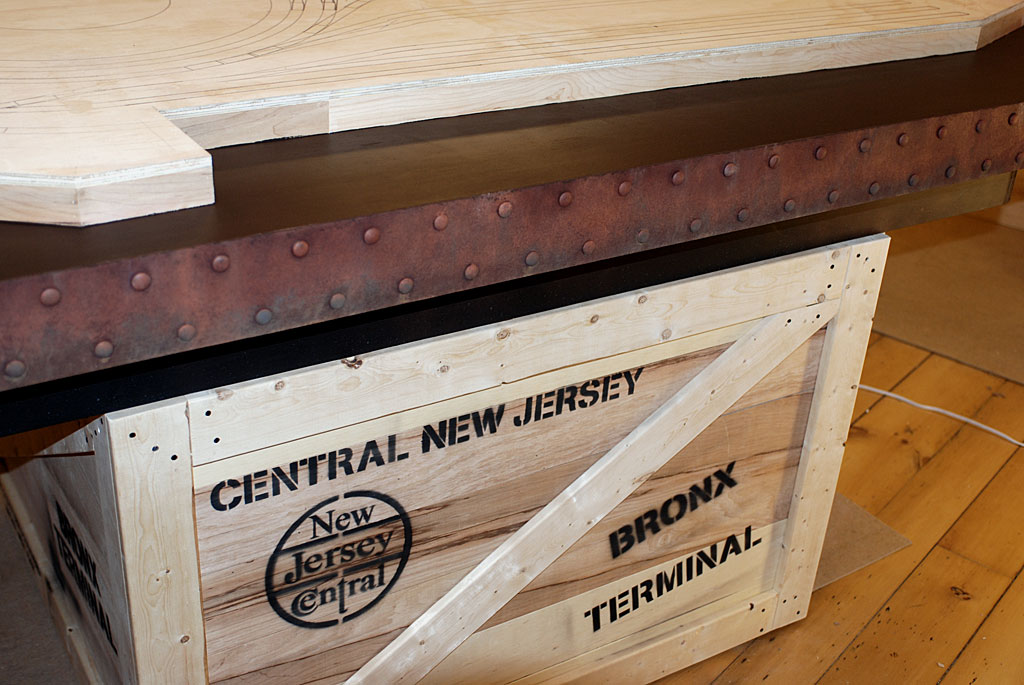

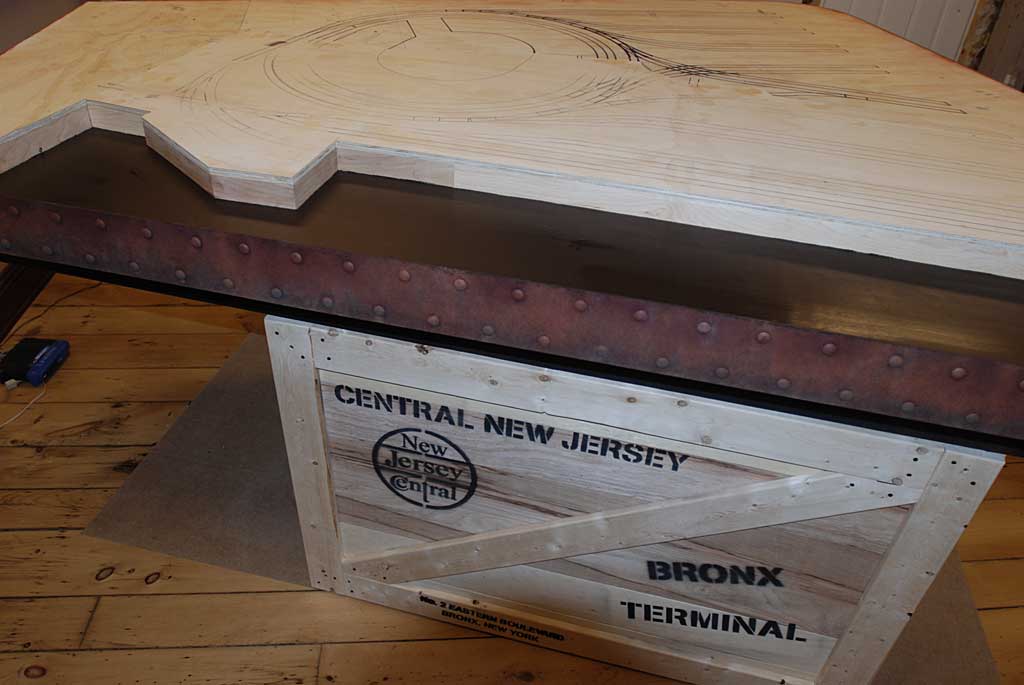

I worked my way around layout applying 3 or 4 layers, each layer would create a deeper red colour to the rust effect. This image is after about 2 applications.

bronx terminal fascia

The next day a few more applications were added, along with some dark gray colouring along the bottom edge.

bronx terminal fascia

bronx terminal fascia

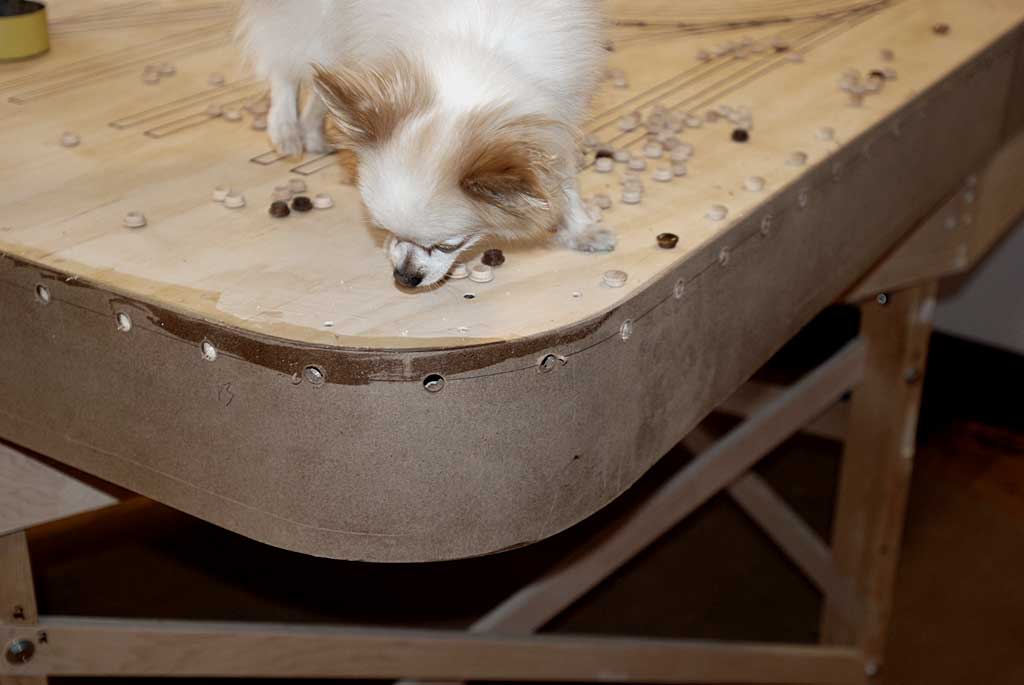

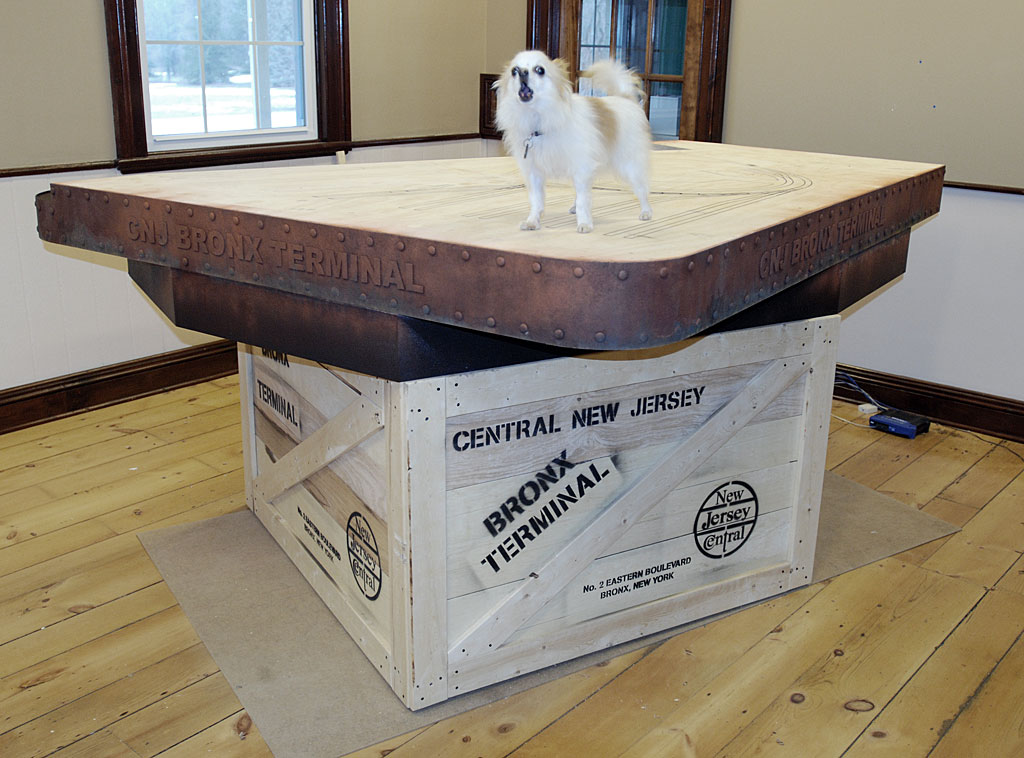

The dog barked his approval.

bronx terminal fascia

bronx terminal fascia

bronx terminal fascia

bronx terminal fascia

bronx terminal fascia

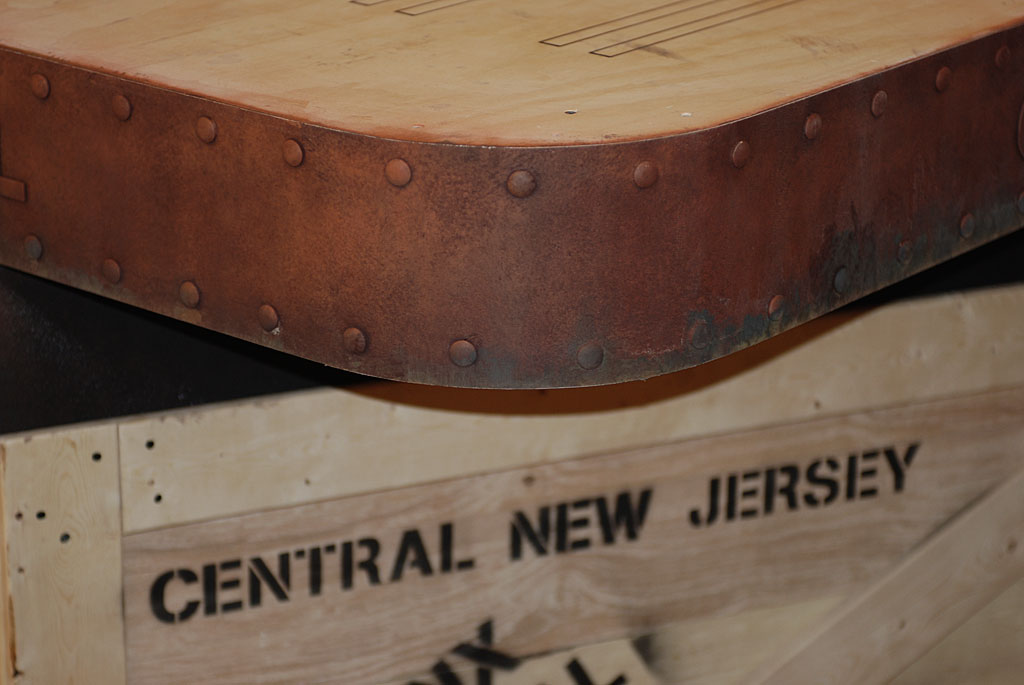

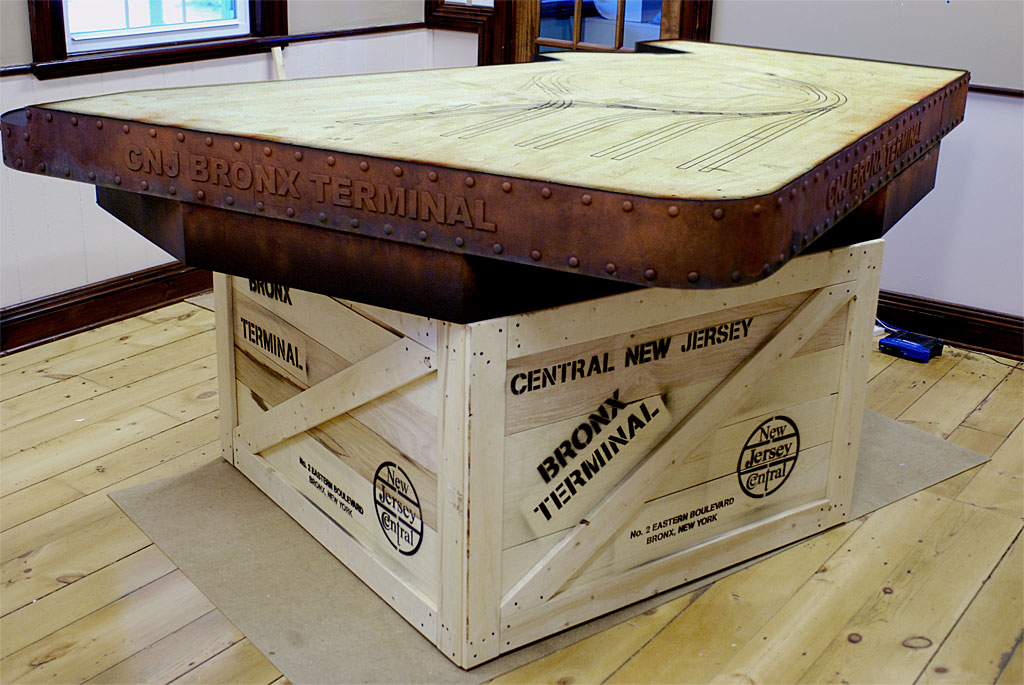

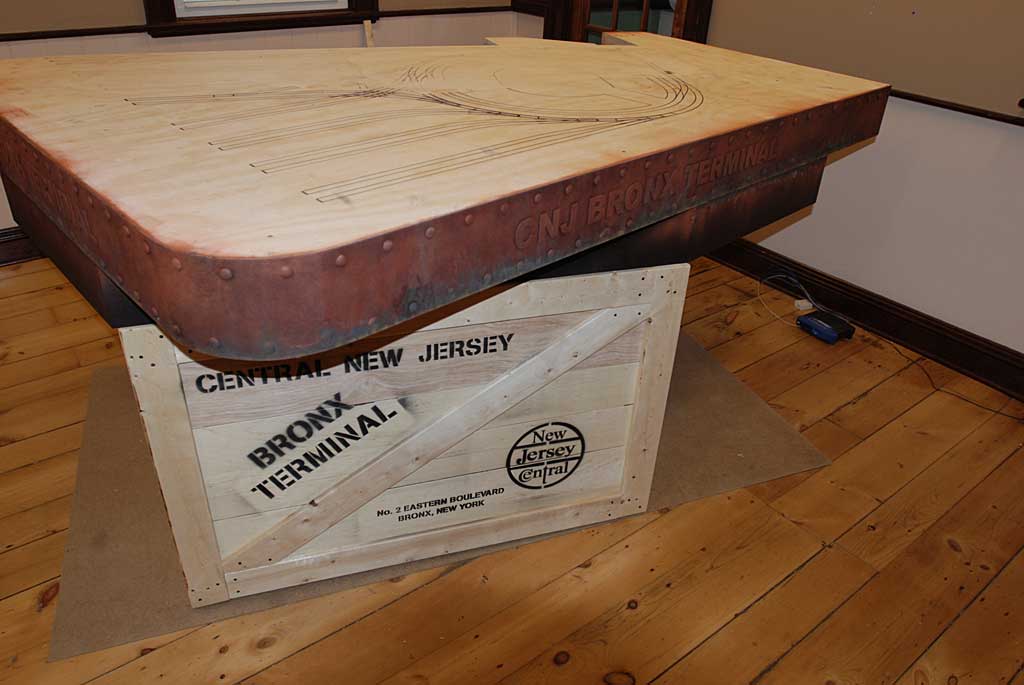

I’m quite happy with the results, it seems right at home on this style of layout, it looks like the front edge of a car barge that has seen lots of use in salt water.

This pretty much wraps up the benchwork construction for the layout, at least for now.  Next up, rebuilding a brass boxcab for the terminal!

On to Next Section


About the Author:

I'm your host, Tim Warris, a product developer in Port Dover, Ontario. Since March of 2007 I have been documenting the construction of the former CNJ Bronx Terminal in HO scale. For my day job, I design track building tools for Fast Tracks, a small company I own and operate. Fast Tracks makes it fast and easy to hand lay your own trackwork. Stop by our website to learn more!

Posted by: Tim | 04-06-2008 | 09:04 PM
Posted in: Benchwork Construction | Latest Posts
